Capacity:

0 ~3.5  ~ 200 M pa;

Accuracy:

±0.5% FS;  ±1.0%FS; ±1.5%FS

Repeatability:

± 0.2%FS; ± 0.4%FS; ± 0.8%FS; ± 1.4%FS;

Power supply:

10 Vdc (6 ~ 12Vdc);

24Vdc (9 ~ 36 Vdc)

Output :

2. 0 mV/V ; 3.0mV/V ;3.33mV/V

0 ~ 5V; 1~5V; 0 ~ 10V; 1~ 10V

or

0 ~ 20 mA; 4 ~ 20mA

Insulation Resistance:

≥500 MΩ

Probe temperature:

300C

Temperature drift:

≤0.15 Mpa /100℃; ≤0.2 Mpa /100℃; ≤0.3 Mpa /100℃;

Electronic Connection:

Plug (5- Pin / 6-Pin);

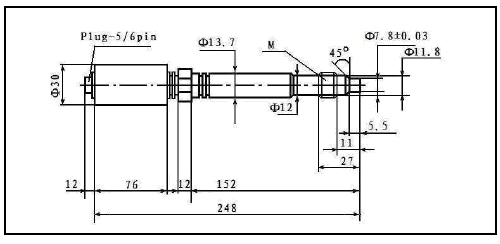

Mechanical Connection:

M14 X 1.5; M18 X 1.5; M22 X 1.5; 1/2-20UNF...etc ( Optional)
