Pressure rang:

  0 ~ 100 kPa ~ 50 mPa

Accuracy:

±0.3% FS; ±0.5%FS; ±1.0%FS;

Non-linearity:

±0.1 ~ 0.5%FS

Hysteresis:

 ±0.1 ~ 0.5%FS

Repeatability:

 ±0.1 ~ 0.5%FS

Power supply:

 5 ~ 15 VDC

 24 Vdc;

Output:

 2.0 ~ 4.8 mV/V;

0 ~ 10V (3-wire );

or

4 ~ 20 mA(2-wire);

Zero balance:

≤ ± 0.2 mV

Insulation Resistance:

≥2kV

Operating temperature:

 -40 ~ 125C

Safe overload:

150% FS

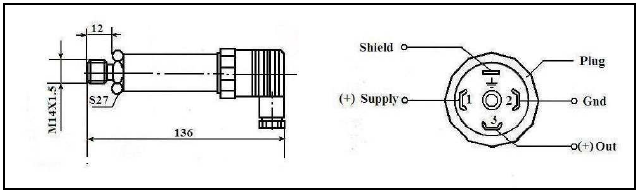

Electronic Connection:

 Shielded cable / DIN43650

Mechanical Connection:

M10 X 1.0; M20 X 1.5; M22 X 1.5... ETC    ( Optional)
