Pressure rang:

-100 kPa ~ 0

Accuracy:

±0.3% FS; ±0.5%FS; ±1.0%FS;

Non-linearity:

±0.5%FS; ±1.0%FS;

Hysteresis:

±0.5%FS; ±1.0%FS;

Repeatability:

±0.5%FS; ±1.0%FS;

Power supply:

6 ~ 15 VDC

24 Vdc ( 9 ~ 36 Vdc);

Output:

5 ~ 10 mV/V;

0 ~ 10 V (3-wire );

or

4 ~ 20 mA(2-wire);

Zero balance:

≤ ± 5mV

Insulation Resistance:

≥500 MΩ

Operating temperature:

-10 ~ 80C

Safe overload:

150% FS

Electronic Connection:

shielded cable

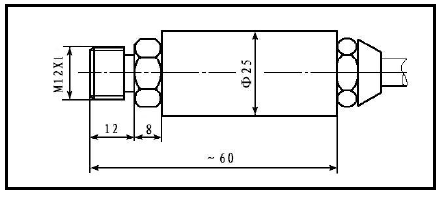

Mechanical Connection:

M10 X 1.0; M20 X 1.5; M22 X 1.5... ETC    ( Optional)
