Specifications:

Pressure rang:  0. ~ 100Mpa

Accuracy:  ± 0.5%FS; ± 1.0%FS; ± 1.5%FS

Repeatability:  0.5%FS; 1.0%FS; 1.5%FS

Power: 8~ 28 V dc (RS485 interface)  /12 ~ 30 Vdc (HART) (optional)

Output:4 ~ 20 mA dc /  RS485 interface / HART  (optional)

Communications Protocol:  Modbus (ASCII)

Operation temperature:  -40 ~ 80 ℃

Insulation Resistance:  ≥ 100 MΩ(50Vdc)

Connection:   M14 x 1.5; M20 x 1.5; M22 x 1.5; G1/4

Electronic connection: 4-pin (Hirschmann); 7-pin plug.；cable.

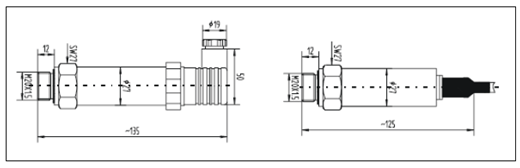

Outline size (reference only)

 ( Outline size and other screw thread available)
