FEATURES:
* Stainless steel, welded with bellow. Potted by adhesive, waterproof and anti-corrosive.
* Single point with bellow, easy installation.
* According to the requirement to choose the micro- strain or
Traditional analog signal output.
* Suitable use for stress measuring as in cable-stayed
Bracket of the offshore oil drilling platform.
SPECIFICATIONS：
Rated capacity:0 ~ 500kg;
Combined accuracy:≤± 0.5%FS
Sensitivity: 2000 μ
or 1 ± 0.004 mV/V
Temperature Span:
Zero: ≤ ± 0.2%FS/10℃
Output: ≤ ± 0.2%FS/10℃
Operating temperature: -40 ~ +85 C;
Input resistance:120 Ohm or 350 Ohm ± 2%;
Output resistance:120 Ohm or 350 Ohm ±2%
Insulation resistance: > 500 M Ohm
Excitation voltage: 2 ~ 12 VDC
Safe overload: 150% FS
Ultimate overload: 200%FS

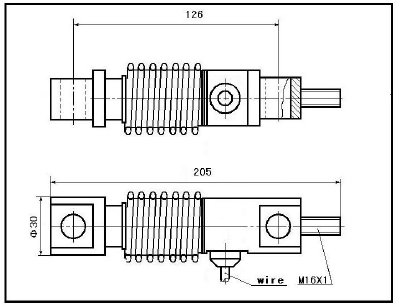

OUTLINE SIZE: (reference only)
