SPECIFICATIONS:

Rated capacity: 0 ~ 100 kN /  150 kN /  200 kN;

Combined accuracy:0.05%FS

Creep:  0.05%FS/ 30Min.

Rated Output :1.0 mV  ± 0.05mV/V or 4-20mA (optional)

Zero balance:±0.1%FS;

Temperature Span:

Zero: ±0.1%FS/℃

Output:±0.2%FS/℃

Operating temperature:-35 ~ +80 ℃;

Input resistance: 700 ± 5 （Ohm）;

Output resistance: 700 ± 5 （Ohm）;

Insulation resistance: > 5000 M Ohm (50Vdc)

Excitation voltage:10 ~ 15 VDC

Safe overload:150% FS

Ultimate overload: 200%FS

Connector: 4-pin connector

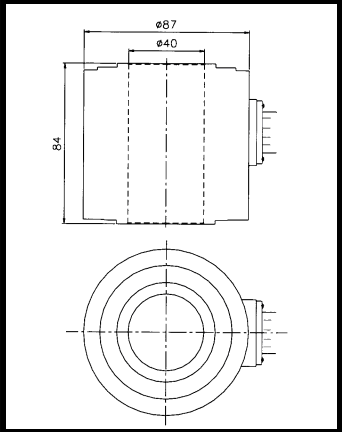

OUTLINE SIZE: ( Reference only)
