FEATURES:
* Barrel type structure, Nitrogen filled and welding sealed, anti-corrosion.
* High combined accuracy and reliability (do not use semiconductors for
compensation) and easy installation.
* Use for pump- off control in oil field automation and other on-line force
measuring.
SPEDIFICATIONS:
Rated capacity: 0 ~ 10T ~ 35 T;
Combined accuracy: 0.03%FS
Sensitivity: 2 mV/V
Non-linearity: ≤ 0.03%FS
Hysteresis: ≤ 0.03%FS
Repeatability: ≤ 0.03%FS
Output full scale: 2.0 mV ± 0.1%;
Zero offset: ± 1%FS;
Temperature Span:
Output: ± 0.04%FS/10℃
Operating temperature: -40 ~ +85 ℃;
Input resistance: 800 Ohm ± 5%;
Output resistance: 700 Ohm ± 1%;
Insulation resistance: > 500 M Ohm
Excitation voltage: 15 VDC
Hermetical sealed: Nitrogen gas filled;
Safe overload: 150% FS
Ultimate overload: 200%FS
Connector: Shielded Cable or Molex 6-pin connector

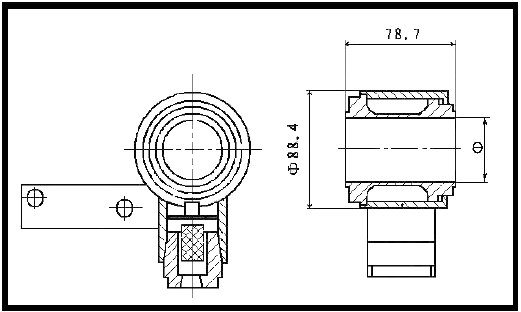

OUTLINE SIZE : (Reference only)
